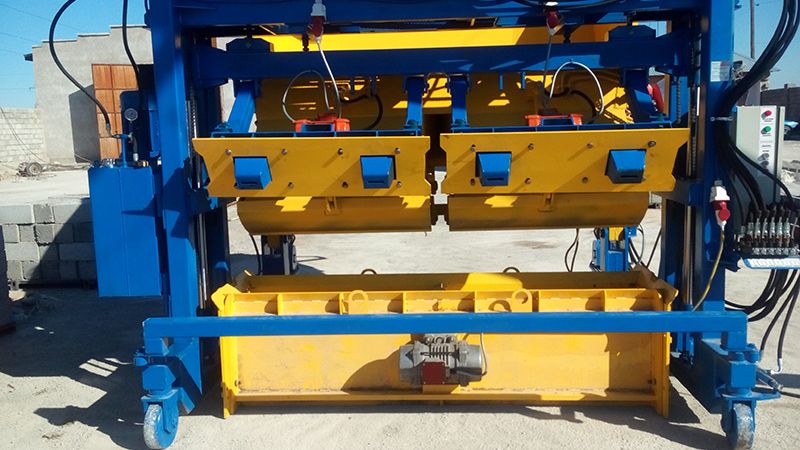

Vibropress «Ural-Fundament»

starts at $26 707

The Ural Fundament range comprises powerful modern vibropresses for the production of foundation wall blocks on the floor

About

The Ural Fundament range comprises powerful modern vibropresses for the production of foundation wall blocks on the floor. Removable tools allow producing foundation blocks with following parameters: Length: 880 mm, 1180 mm, 2380 mm; Width: 300 mm, 400mm, 500mm, 600mm.; Height: 580 mm.





All of the products made with the Ural Fundament vibropress completely satisfy the requirements of GOST 13579-78 standard and they can be used to build girder foundations, cellar walls and crawl spaces, as well as industrial buildings, barriers, etc.

Auxiliary equipment
Specifications

Overall weight (depends on furnishing)

starting from 5000 kg

Dimensions (length x width x height)

3920 x 2745 x 2055 mm

Molding area size (length x width)

2380 x 600 mm

Molding area height

580 mm

Dipper volume

2,6 м3

Molding cycle duration

4 min

Operators (CBP line)

3-4

Matrix, punch and loader drive

hydraulic

Hydraulic system pressure

16 MPa

Supply voltage and frequency

380 V, 50 Hz

Installed power (depends on furnishing)

starting from 14.5 kW

Documents

Order and delivery

Worldwide delivery

Supervision of Installation and Commissioning

Warranty service
