About

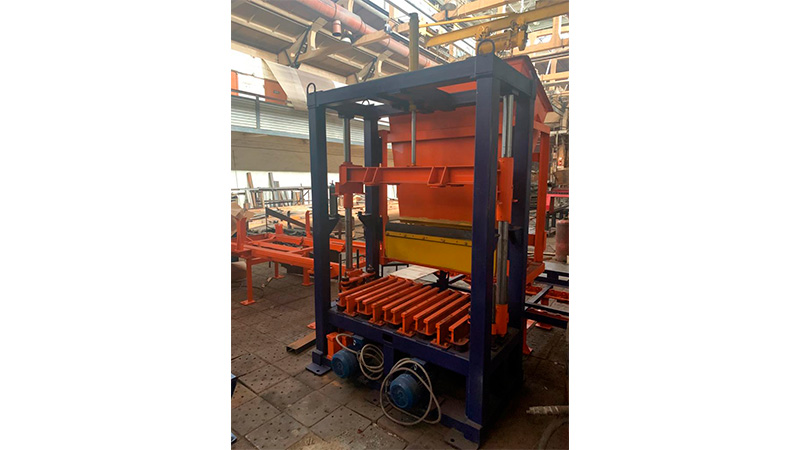

Vibropress "Ural M5 next" is an ideal choice for those who choose the main direction of production of paving slabs. This vibropress is a new development of our specialists, which includes the advantages of a shock vibrating table and high productivity, due to the increased forming zone. Using the Ural M5 next vibropress you can significantly increase the productivity of paving slabs and, accordingly, its quality.
Auxiliary equipment
Specifications
|
Overall weight (depends on furnishing) |
starting from 1900 kg |
|
Molding area size (length x width) |
600 x 1000 mm |
|
Molding area height |
50-300 mm |
|
Molding cycle duration |
30 s |
|
Operators (CBP line) |
4 |
|
Molding skid (waterproof plywood) |
1070 x 630 x 30 mm |
|
Primary intake hopper volume |
0,900 m3 |
|
Secondary module hopper volume (option) |
0,150 m3 |
|
Matrix, punch and loader drive |
hydraulic |
|
Hydraulic system pressure |
12 MPa |
|
Supply voltage and frequency |
380 V, 50 Hz |
|
Installed power (depends on furnishing) |
starting from 13.5 kW |
|
Vibration table power |
5.5 kW |
