Vibropress «Ural-M3»

starts at $5 490

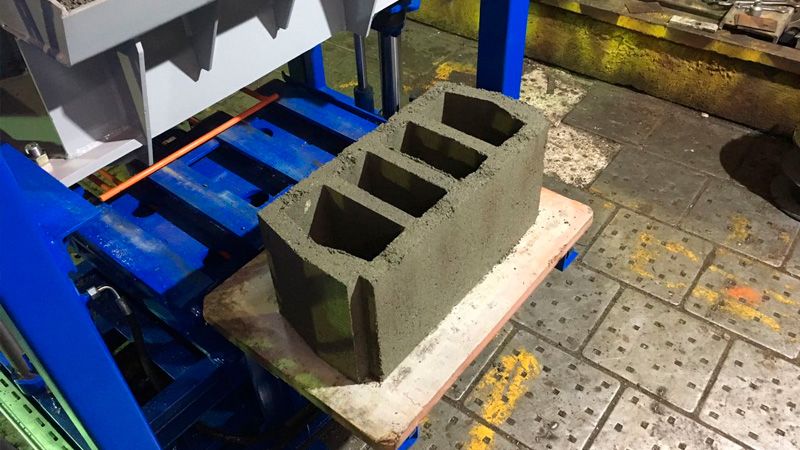

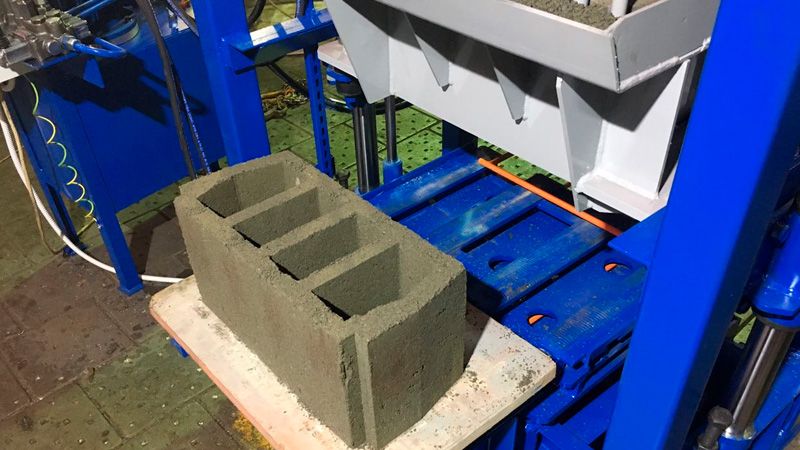

Ural M3 devices can produce simultaneously 3 wall stones (390 x 190 x 188 mm) or three curbstones (600 x 80 x 200 mm) or one edgestone (600 x 150 x 300 mm)

120 pcs/h
11 m²/h
60 lin. m.
About

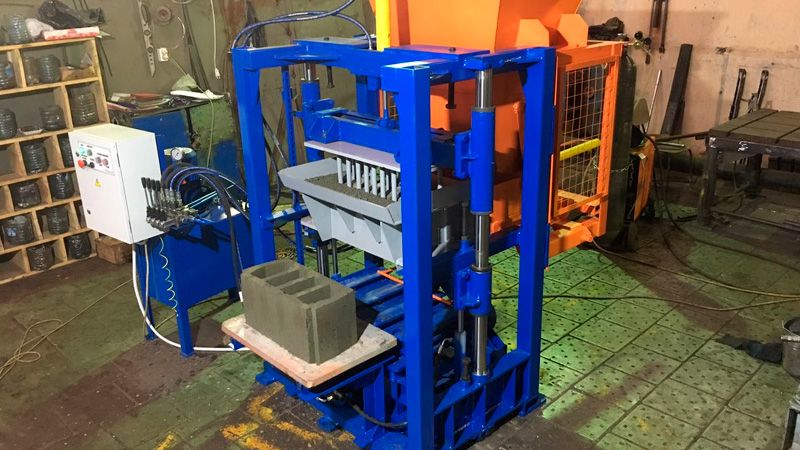

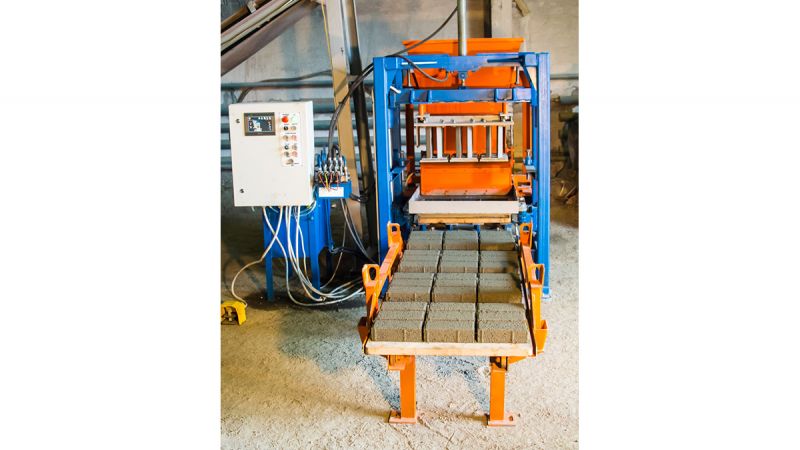

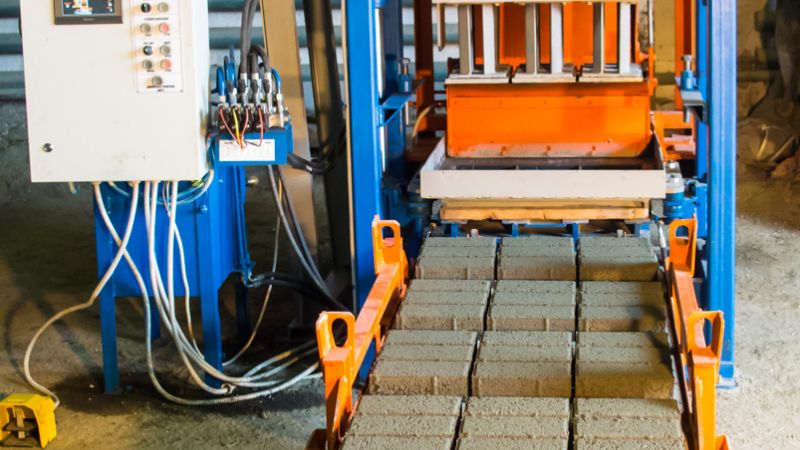

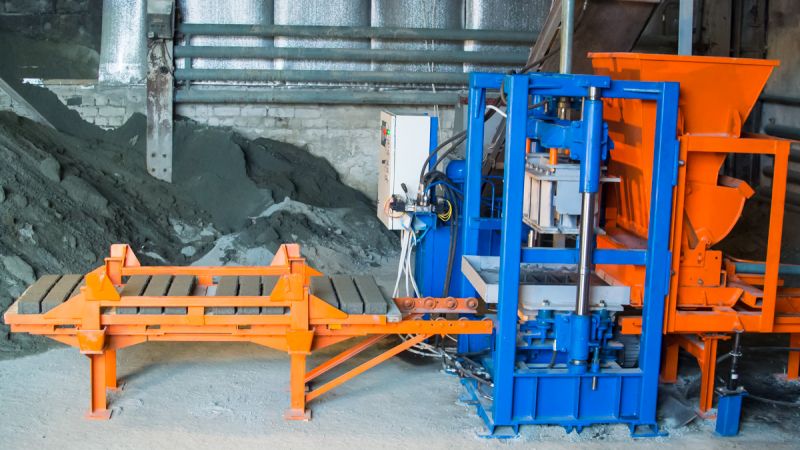

The Ural M3 vibropress was designed for those who cannot operate large-size equipment and intend to produce a wide range of quality products, from wall stones to edgestones and tiles.

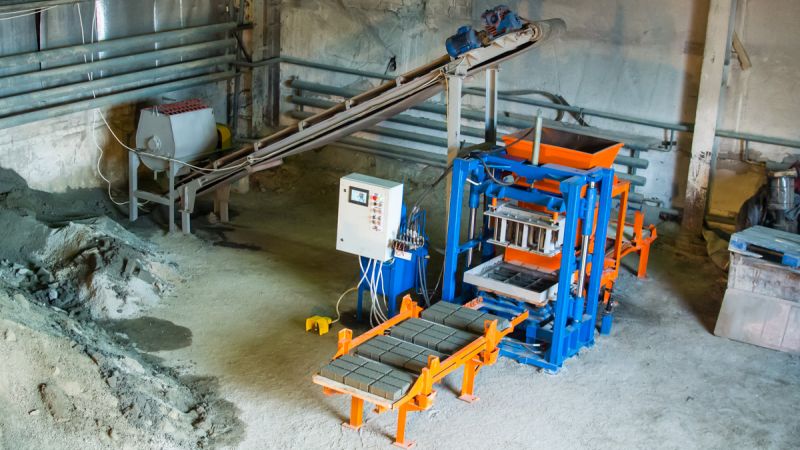

Within one 60-120 second molding cycle (depending on the degree of mechanization), the Ural M3 devices can produce simultaneously 3 wall stones (390 x 190 x 188 mm) or three curbstones (600 x 80 x 200 mm) or one edgestone (600 x 150 x 300 mm). Besides, it is possible to arrange several production line options based on the Ural M3 vibropress with different degree of mechanization and you can even automate your vibropress!!! The wide opportunities provided by this compact vibropress will be interesting for entrepreneurs wishing to earn good money in the building supply market.

Notes: The price of Ural M3 vibropress includes any press mold from the standard list, commissioning works, and personnel training. Racks and skids are produced separately at negotiated prices.

Auxiliary equipment
Specifications

Overall weight (depends on furnishing)

starting from 1000 kg

Molding area size (length x width)

600 x 400 mm

Molding area height

50-240 mm

Molding cycle duration

30 s

Operators (CBP line)

2-3

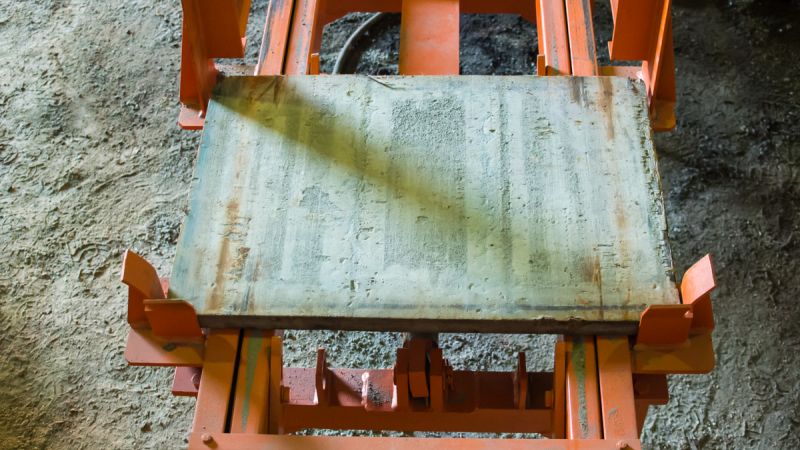

Molding skid (waterproof plywood)

650 x 450 x 20 mm

Loading matrix

Manual / mechanical

Hydraulic system pressure

12 MPa

Supply voltage and frequency

380 V, 50 Hz

Installed power (depends on furnishing)

starting from 7.0 kW

Vibration table power

3.0 kW

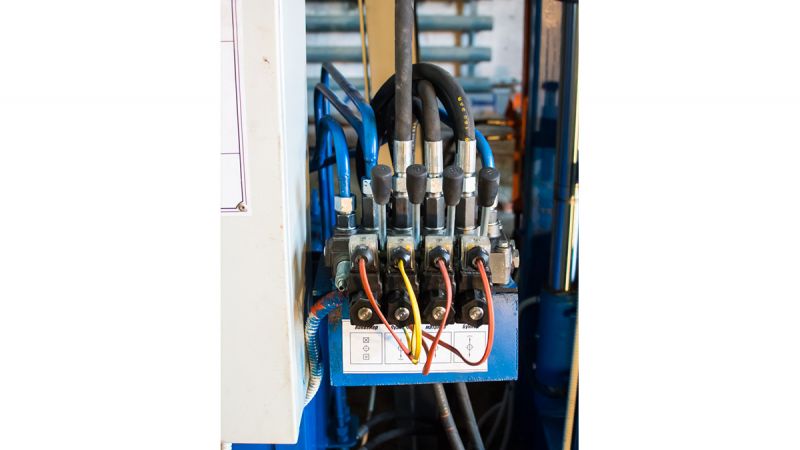

Oil pump station power

4.0 kW

Documents

Order and delivery

Worldwide delivery

Supervision of Installation and Commissioning

Warranty service
