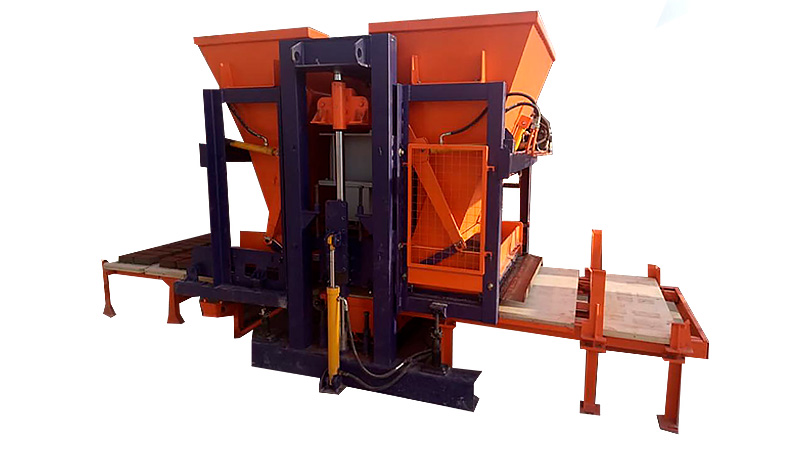

Vibropress «Ural-M5-Maksi»

starts at $28 871

Ural M5 is a powerful high-output assembly. Wide application possibilities of this device can satisfy very different demands.

500 pcs/h
36 m²/h
100 lin. m.
About

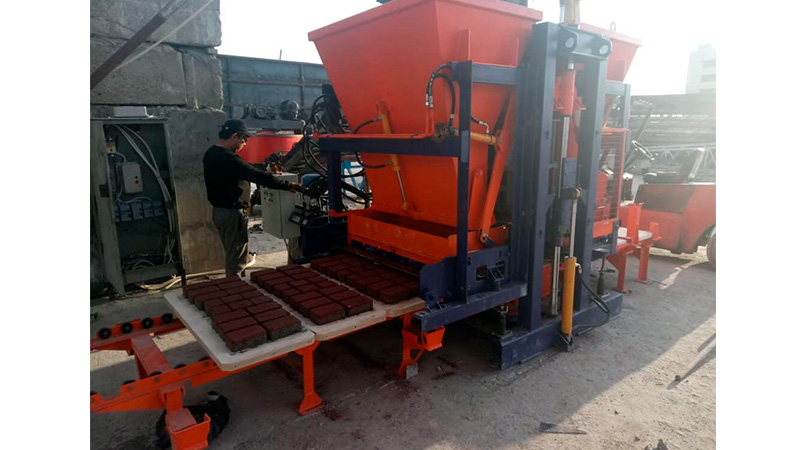

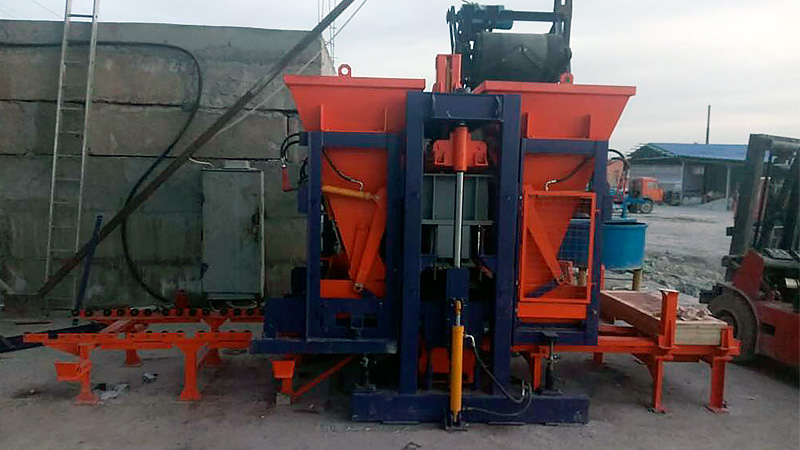

Vibropress "Ural-M5-MAXI" is a powerful, high-performance complex with the ability to mold two vertically standing curbs in one molding (height of the molding zone 50-300 mm)



For everyone, the owner of the Ural M5 and not only vibropress has an opportunity to replace their vibropress with the improved Ural M5 Maxi without additional costs. Replacement of the foundation, mortgage frame, technological plywood pallets, racks is not required. The height of the molding zone of 50-300mm will allow you to mold two vertically standing curbs at the same time, thereby you get a higher productivity in the press and the quality of the curb stone. .

Note: The price of Ural M03 vibropress includes any press mold from the standard list, commissioning works, and personnel training. Racks and skids are produced separately at negotiated prices.

Auxiliary equipment
Specifications

Overall weight (depends on furnishing)

starting from kg

Molding area size (length x width)

400 x 1000 mm

Molding area height

50-200 mm

Molding cycle duration

30 s

Operators (CBP line)

4

Molding skid (waterproof plywood)

1070 x 480 x 30 mm

Primary intake hopper volume

0,900 m3

Secondary module hopper volume (option)

0,150 m3

Matrix, punch and loader drive

hydraulic

Hydraulic system pressure

12 MPa

Vibration table oscillation frequency

70 Hz

Supply voltage and frequency

380 V, 50 Hz

Installed power (depends on furnishing)

starting from 13.5 kW

Vibration table power

11 kW

Oil pump station power

11 kW

Order and delivery

Worldwide delivery

Supervision of Installation and Commissioning

Warranty service
