Vibropress «Ural-M7»

starts at $32 527

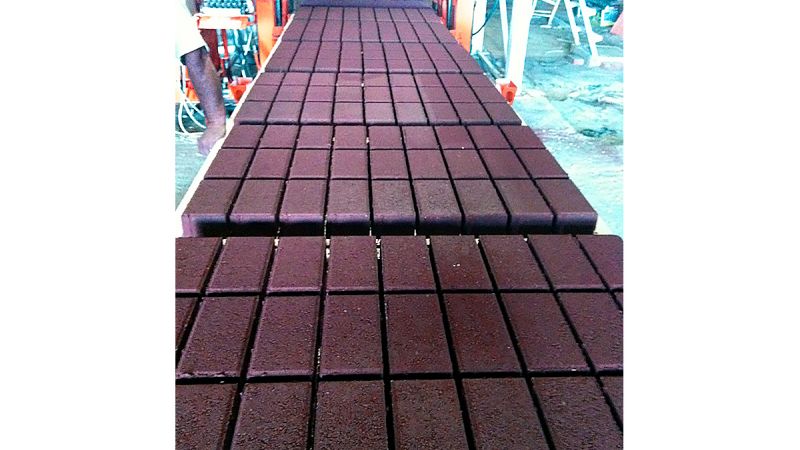

The Ural M7 vibropress is unparalleled in Russia. In one molding cycle, the vibropress can produce either two edgestones of 1000 x 180 x 300 mm or six curbs of 1000 x 80 x 200 mm.

700 pcs/h
54 m²/h
180 lin. m.
About

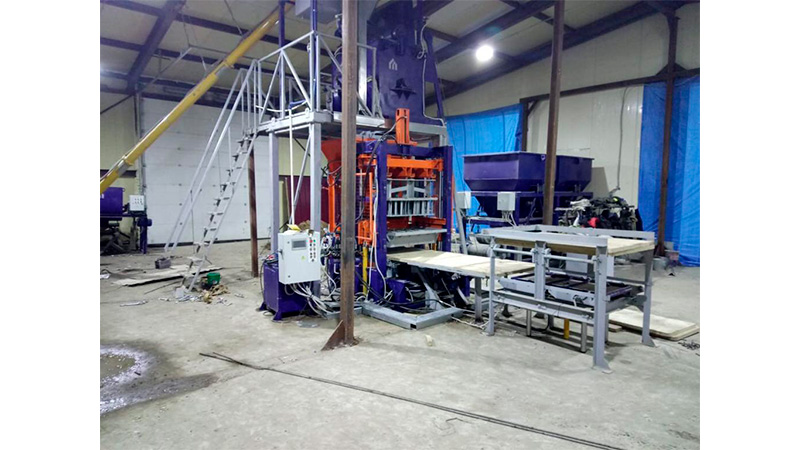

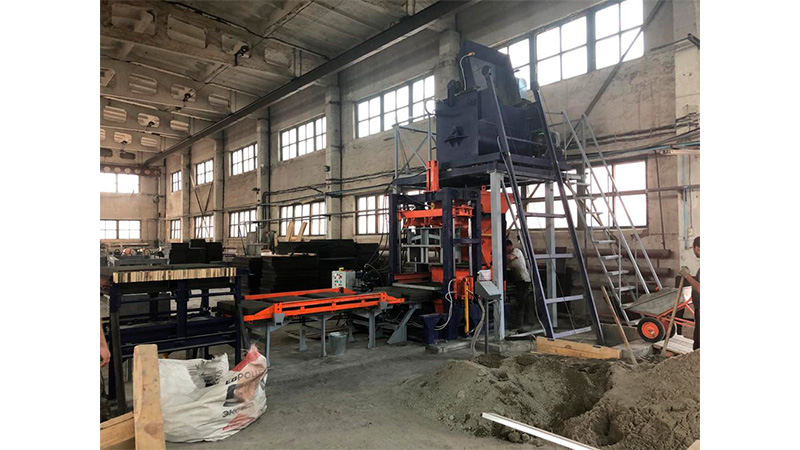

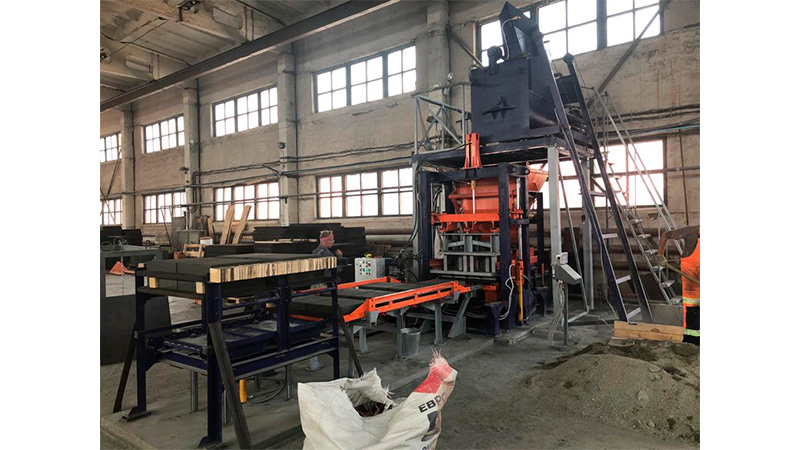

Due to the expanded molding area of 1000 x 600 mm and its capacity to produce stones of 50-300 mm high, the Ural M7 vibropress is unparalleled in Russia. In one molding cycle, the vibropress can produce either two edgestones of 1000 x 180 x 300 mm or six curbs of 1000 x 80 x 200 mm, or seven standard wall stones of 390 x 190 x 188 mm simultaneously.

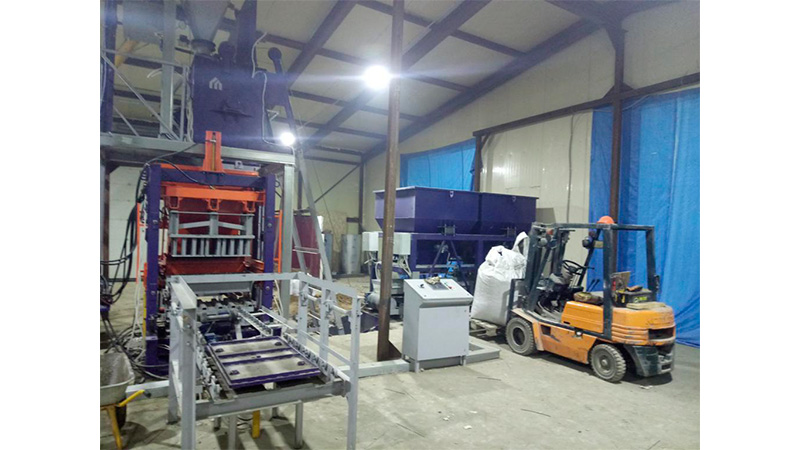

At the customer’s request, the vibropress can be complemented with a special module for two-layer products and it can be automated. The existing models allow choosing skid intake option (horizontal or vertical), concrete mixer location (above the vibropress on a ramp, next to the vibropress and the conveyor belt). The existing press mold models for Ural M7 vibropresses can satisfy the growing requirements of the construction industry.

Note: The price of Ural M7 vibropress includes any press mold from the standard list, commissioning works and personnel training. Racks and skids are produced separately at negotiated prices.

Full Cycle automated line

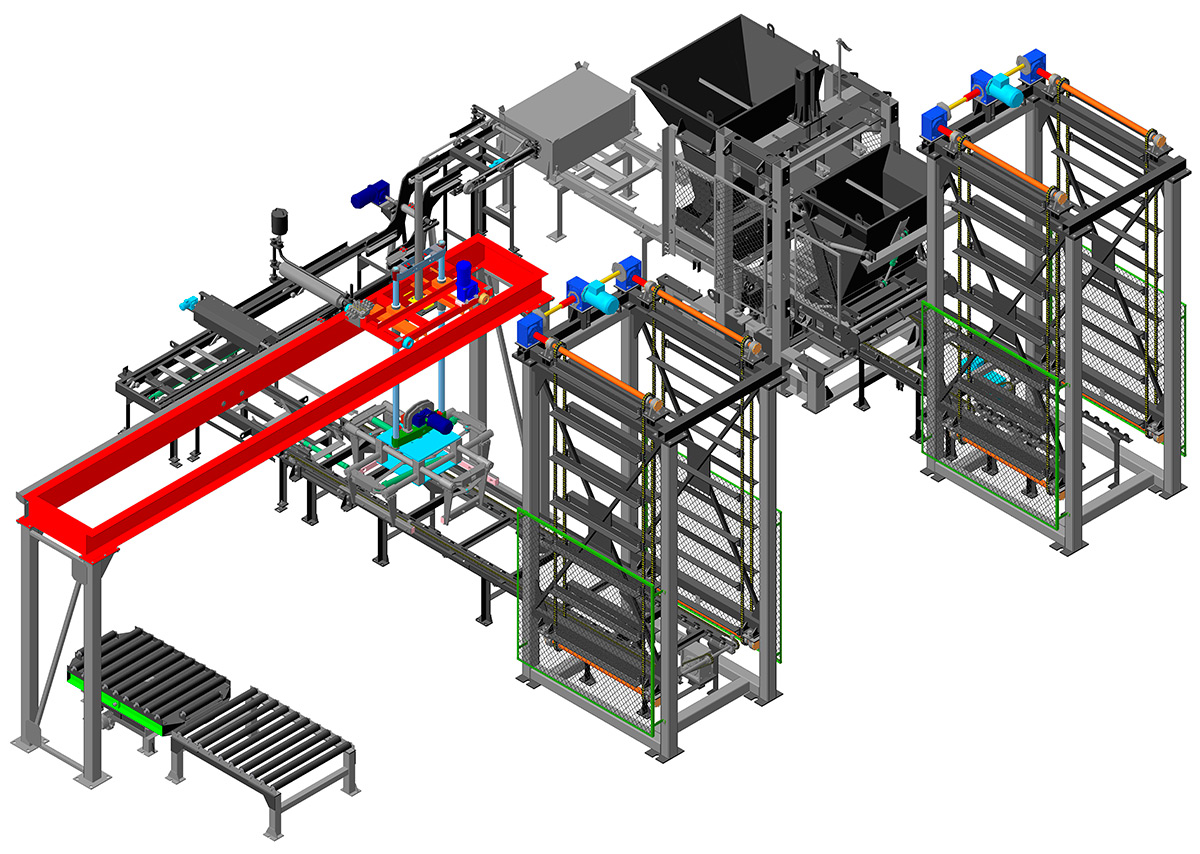

Vibropress «Ural-M7» can using in Full Cycle automated line — The Full Cycle automated line complements your vibropress with a set of mechanisms for stacking molded products, unloading them from operational skids and laying them on shipping skids. They also feed empty skids to vibropress hopper, providing for a complete closed cycle and eliminating manual labor.

Auxiliary equipment
Specifications

Overall weight (depends on furnishing)

starting from 2500 kg

Molding area size (length x width)

600 x 1000 mm

Molding area height

50-300 mm

Molding cycle duration

40 s

Operators (CBP line)

3-4

Molding skid (waterproof plywood)

1070 x 680 x 40 mm

Primary intake hopper volume

1,200 m3

Secondary module hopper volume (option)

0,600 m3

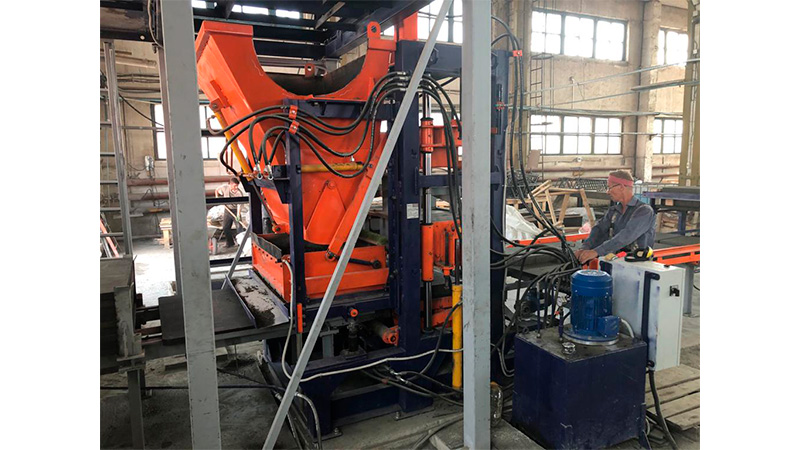

Matrix, punch and loader drive

hydraulic

Hydraulic system pressure

12 MPa

Vibration table oscillation frequency

65 Hz

Supply voltage and frequency

380 V, 50 Hz

Installed power (depends on furnishing)

starting from 22.0 kW

Vibration table power

11.0 kW

Oil pump station power

11,0 kW
