Vibropress «Ural-M5»

starts at $27 323

Ural M5 is a powerful high-output assembly. Wide application possibilities of this device can satisfy very different demands.

500 pcs/h
36 m²/h
100 lin. m.
About

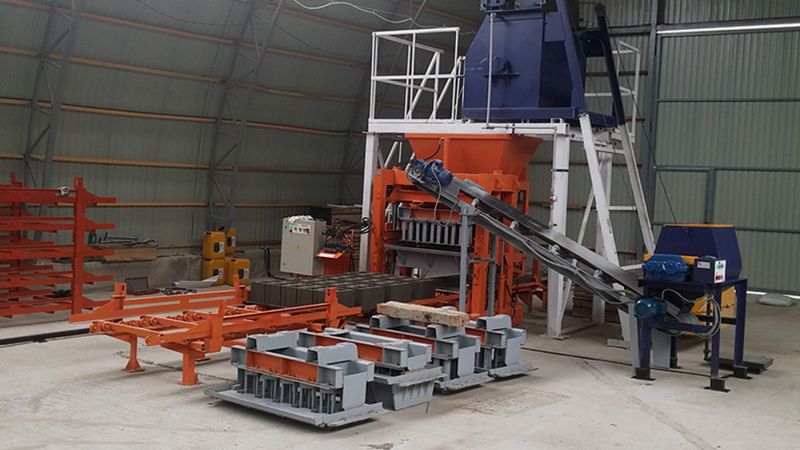

Ural M5 is a powerful high-output assembly. Wide application possibilities of this device can satisfy very different demands. This vibropress can be fitted with a vertical skid intake system or a conventional horizontal system. For those who have low ceilings at production premises, we designed a conveyor belt system for concrete mixture feed.

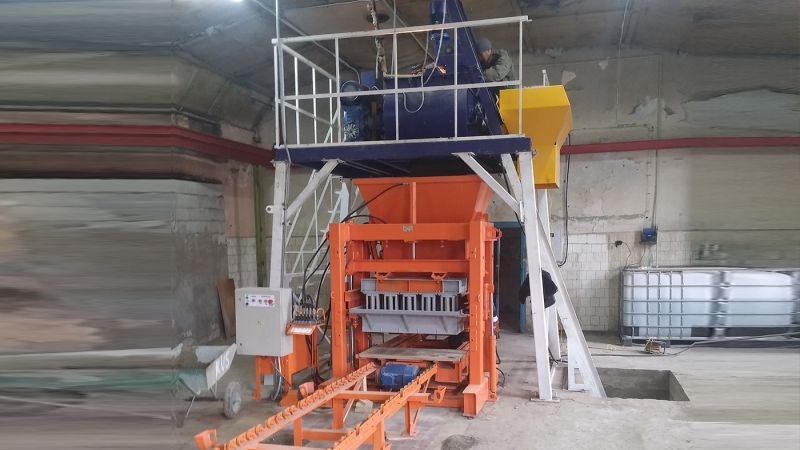

Those who have high ceilings (over 4.5 m) can choose to set up the concrete mixer on a ramp above the vibropress. If you buy a Ural M5 device in the simplest version, you will always be able to fit it with additional modules to produce things like two-layered products or wall blocks with insulation lining. Among other distinct advantages of the Ural M5 vibropress, there is a possibility to fit an automated control system for the production operations. Besides, the Ural M5 can produce a very large range of products comprising over 400 articles, which makes it a very sagacious and profitable investment.

Note: The price of Ural M5 vibropress includes any press mold from the standard list, commissioning works, and personnel training. Racks and skids are produced separately at negotiated prices.

Auxiliary equipment
Specifications

Overall weight (depends on furnishing)

starting from 1900 kg

Molding area size (length x width)

400 x 1000 mm

Molding area height

50-200 mm

Molding cycle duration

30 s

Operators (CBP line)

4

Molding skid (waterproof plywood)

1070 x 480 x 30 mm

Primary intake hopper volume

0,900 m3

Secondary module hopper volume (option)

0,150 m3

Matrix, punch and loader drive

hydraulic

Hydraulic system pressure

12 MPa

Vibration table oscillation frequency

70 Hz

Supply voltage and frequency

380 V, 50 Hz

Installed power (depends on furnishing)

starting from 13.5 kW

Vibration table power

8.0 kW

Oil pump station power

5,5 kW
